Product presentation

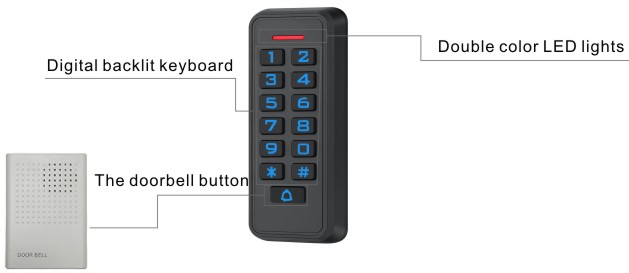

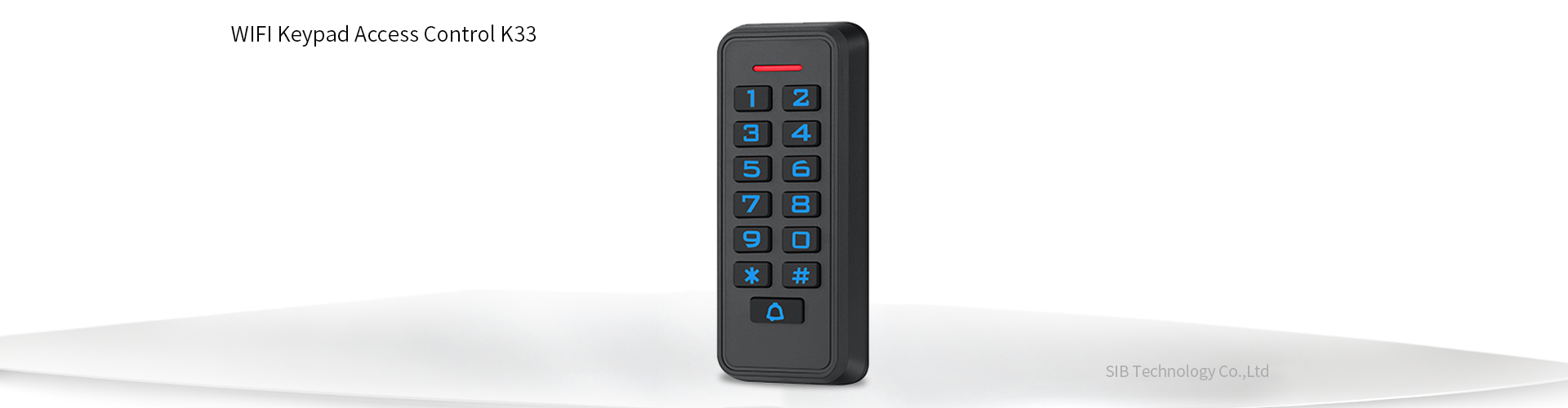

Digital backlit keypad
Multi-function standalone access controller and reader,
WG26 output/Input
Capacity: 10000 cards/ codes
Access ways:card,code,card+code,mobile APP




Product Version

Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
K33EM
EM Card 125Khz
Indoor
Tuya Smart Wifi Access Control Keypad Lock
SIB
K33MF
MF Card 13.56Mhz
Indoor
Tuya App Access Control
SIB
K33EM-W
EM Card 125Khz
IP68
Wifi Access Control
SIB
K33MF-W
MF Card 13.56Mhz
IP68
Keypad Door Entry with Tuya App Unlocking


Technical parameters


Card type:EM/MF/HID/CPU

Plastic case

Environment Humidity:10%~90%

lock output:≤1A
Working voltage:DC12V±10%

Static electricity:≤30mA

Alarm output:≤20A

Output short circuit protection time:≤100μS
Card read distance:2~5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 099s

Dimension:111 *46*22mm

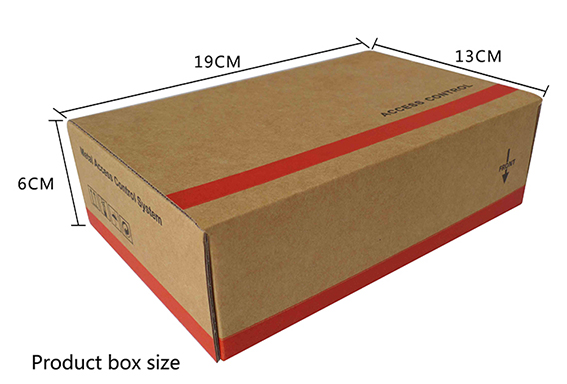

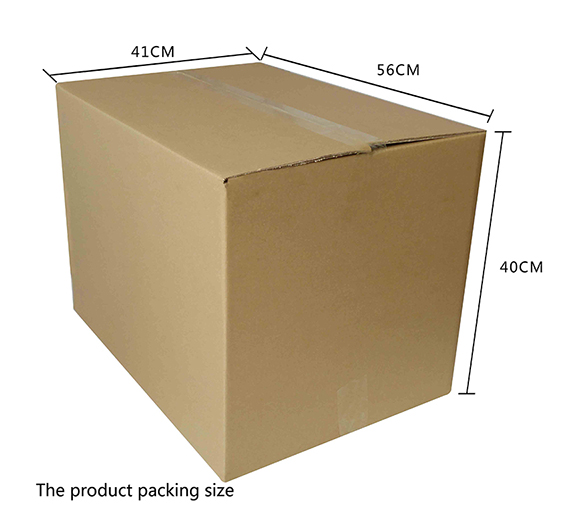

Package size

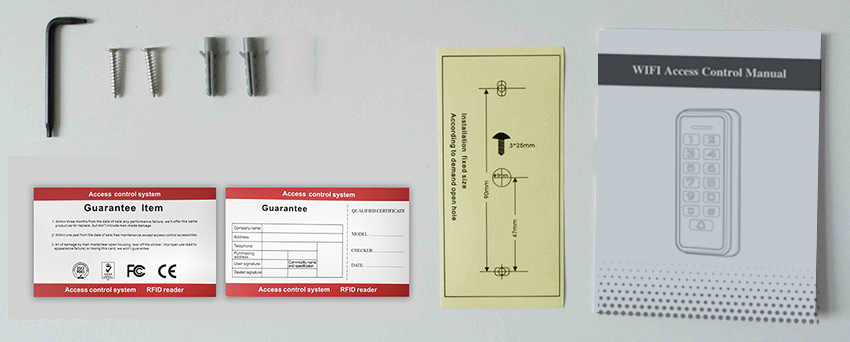

Packing list

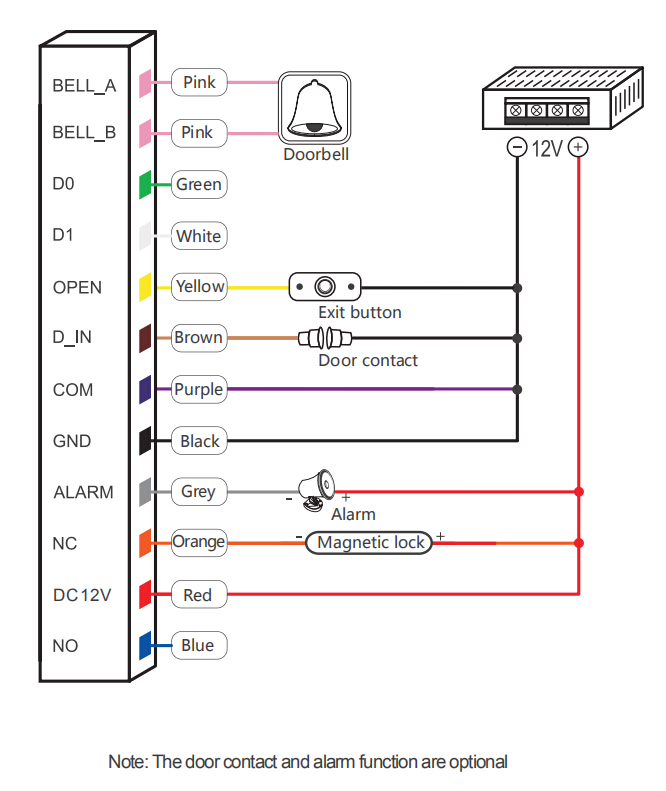

Common power supply diagram

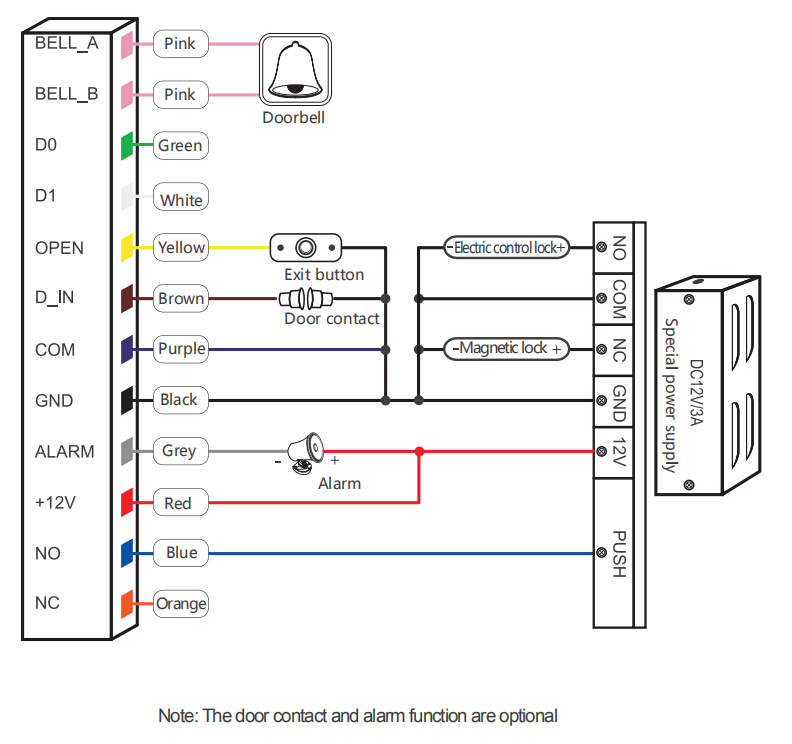

Special power supply diagram

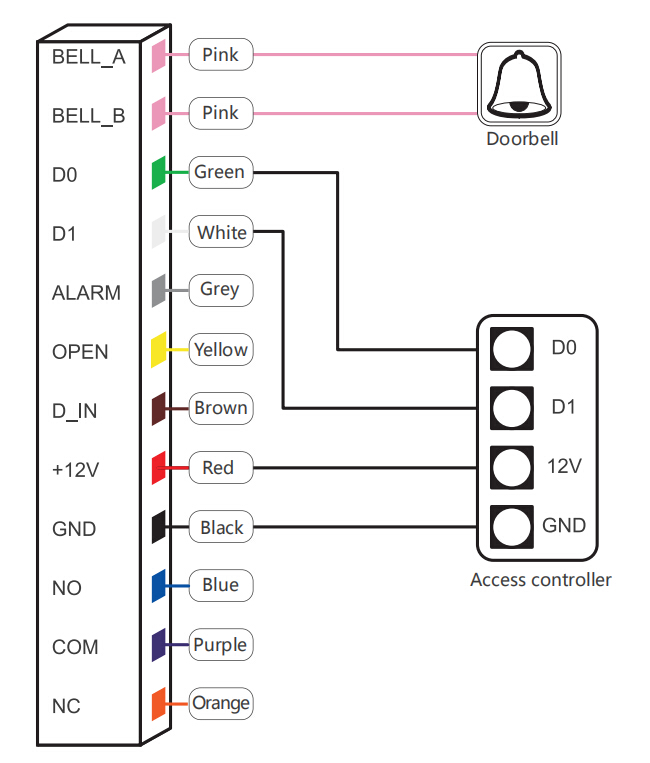

Reader Mode
