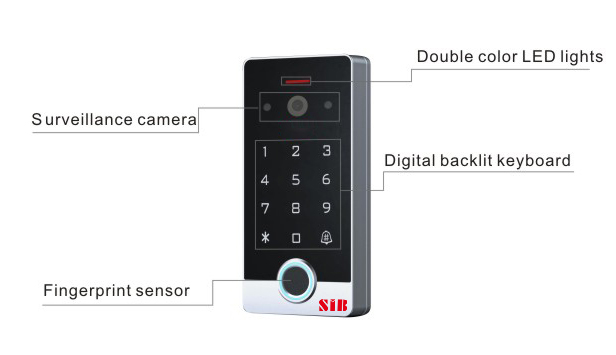

Product presentation


Capacity:1000 cards/codes,200 fingerprints
WG26-58 input/output
With data backup function
Can set admin add/delete card
Vistor can be viewed through mobie video surveillance
Access ways:fingerprint,card,code,mobie APP(optional)


tuya Wifi function (optional)
Check visitor records
set temporary code
remote unlock & manage users by mobile phone App


Product Version


Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
VF3EM
EM Card 125Khz
Indoor

SIB
VF3MF
MF Card 13.56Mhz
Indoor

SIB
VF3EF
EM+MF Card 125Khz+13.56Mhz
Indoor

SIB
VF3EM-W(WIFI)
EM Card 125Kh
Indoor

SIB
VF3MF-W(WIFI)
MF Card 13.56Mhz
Indoor

SIB
VF3EF-W(WIFI)
EM+MF Card 125Khz+13.56Mhz
Indoor



Technical parameters


Card type:EM/MF/HID/CPU

Capacity: 1000cards/codes&200fingerprints

waterproof IP68

Environment Humidity:10%~90%

Lock output:≤1A

Working voltage:DC12V

Static electricity:≤35mA

Alarm output:≤20A

Output short circuit protection time:≤100μS

Card read distance:2~5cm

Ambient temperature:-40℃~60℃

Door Opening Time: 0~99s

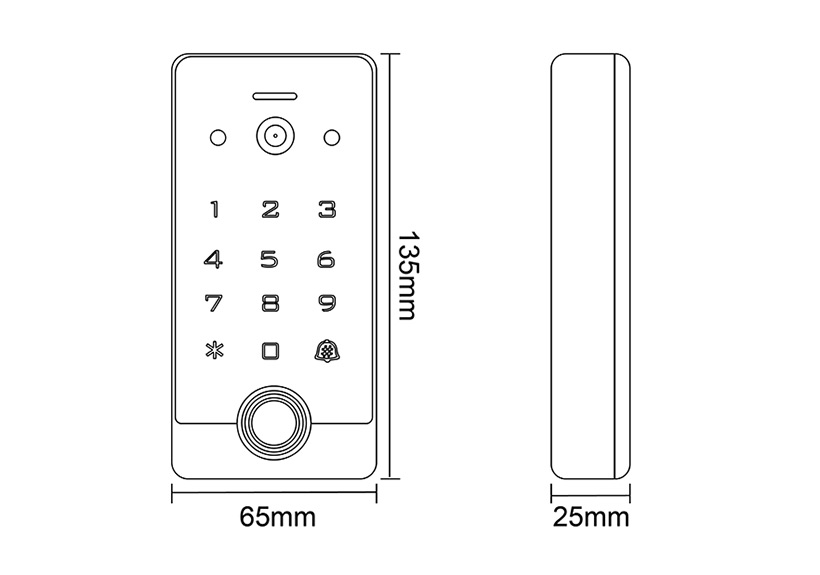

Product Dimension







Package size

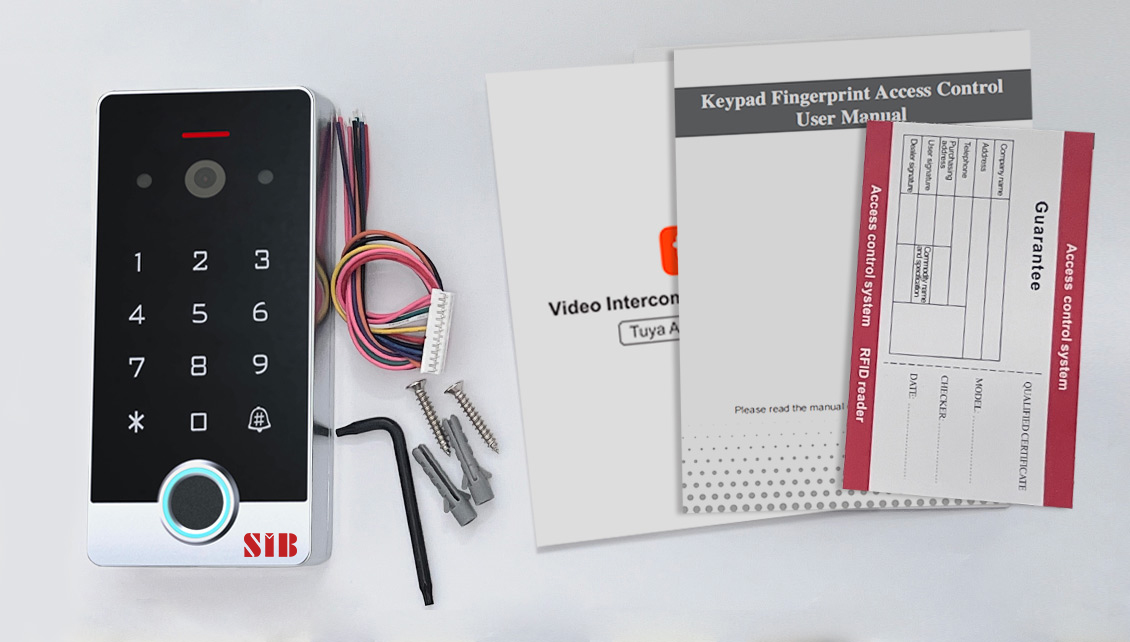

Packing list





Common power supply diagram





Special power supply diagram






Reader mode diagram
