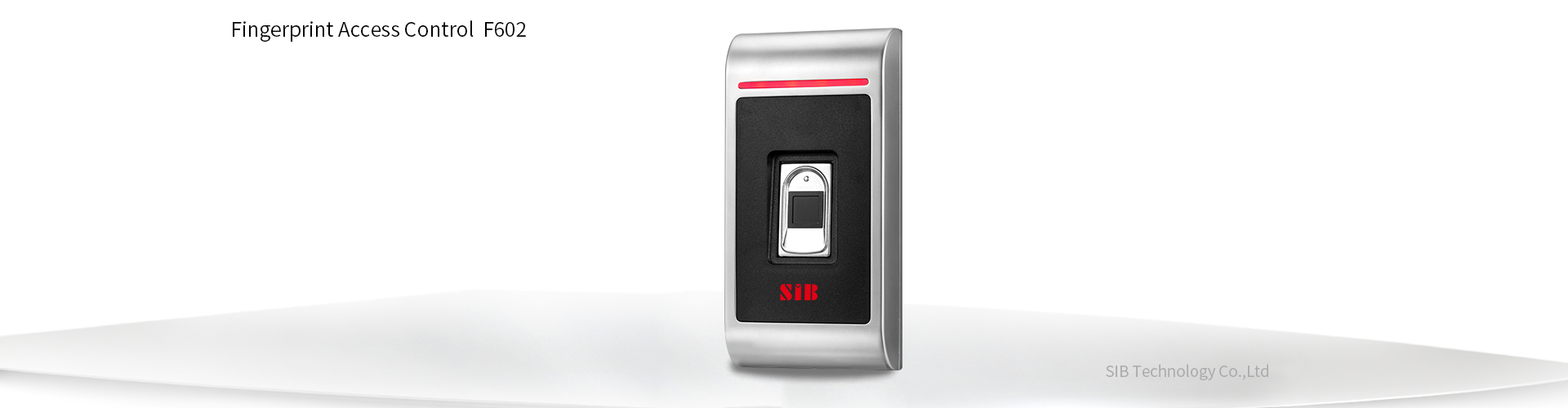

Product presentation

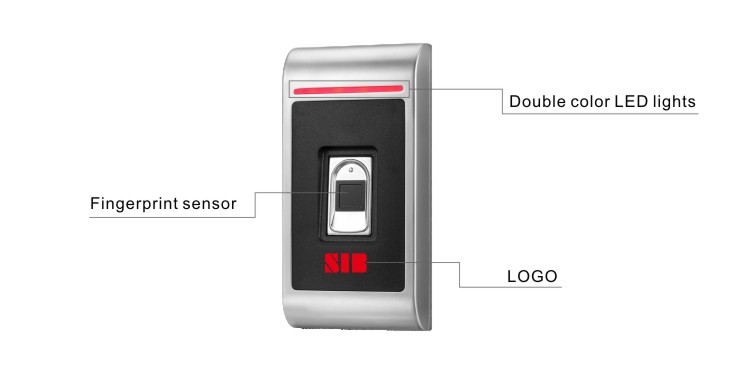

Semiconduct fingerprint reader

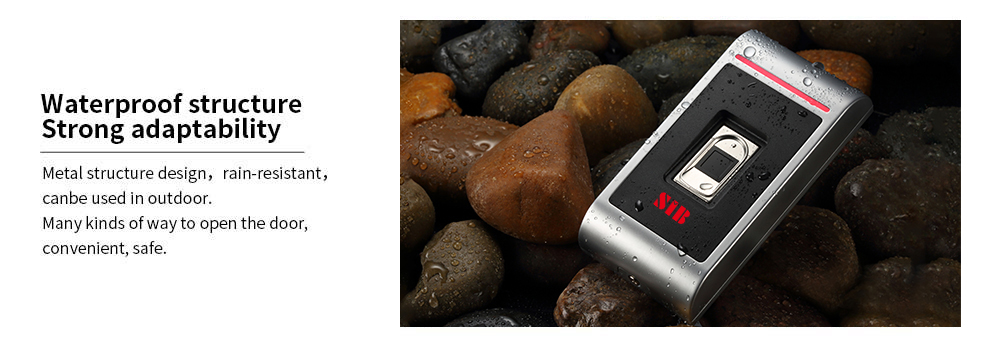

Metal case, anti-vandal
Waterproof degree:IP68

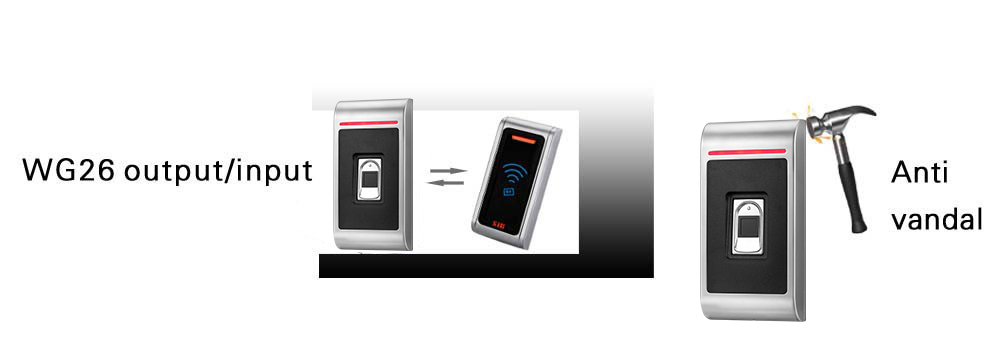

Fingerprint access controller and reader, WG26 Input / output
Capacity: 200 fingerprints and 10,000 cards
Accesses ways: fingerprint ,card
Product Version
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
|
SIB |
F602EM |
EM Card 125Khz/Fingerprint |
Indoor |
EM Card & Fingerprint Readers Access Controller |
|
SIB |
F602EM-W |
EM Card 125Khz/Fingerprint |
IP68 |
Waterproof Proximity Readers & Gate Entrance |
Technical parameters
Card type：ID/IC
Waterproof：IP68
Environment Humidity：10%～90%
Lock output：≤1A
Working voltage：DC12V
Static electricity：≤30mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：2～5cm
Ambient temperature：-40℃～60℃
Door Opening Time: 0～99s
Dimension：115 *57*22mm

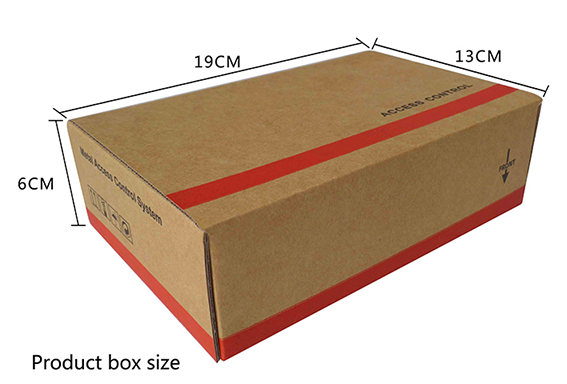

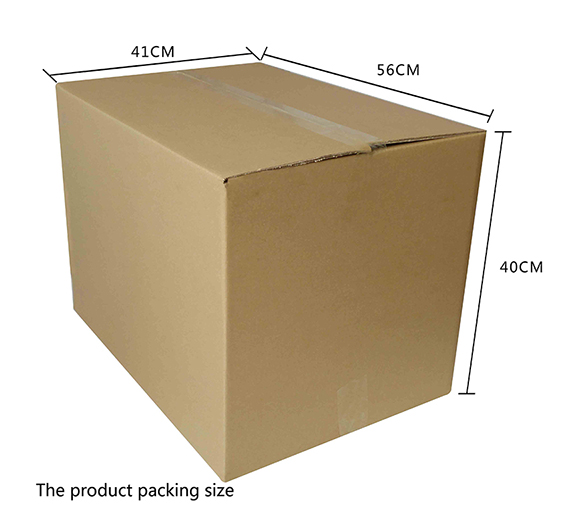

Package Size

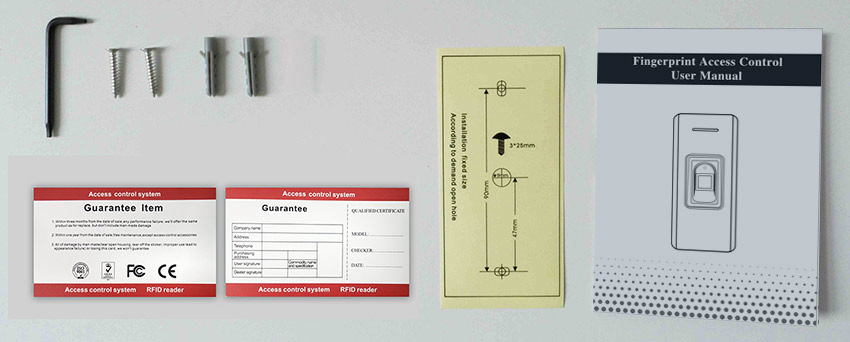

Packing List
